Product Description
We ,LEDventure, focus on all kinds of led display screen manufacturing included indoor outdoor led display, rental led display, flexible led display, transparent led display, dance floor led series, HD resolution led display, perimeter led display,stadium sport led display screen, led sign, led display board and led billboard.
Part 1: Product Mainly Features
Indoor Outdoor led advertising curved display screen is very hot sale for indoor outdoor media solution series,
- very cost effective,
- high refresh rate more than 3840hz ,
- also light weight design cabinet for options,
- image quality is top, running stable,
- resolution is high density,
- plus simple installation to make this series more and more popular in indoor outdoor media curve screens
| Pixel Pitch | 1.25 to 10mm |
| Brightness | 800-6500nits |
| Cabinet Size | 960x960mm |
| Max. Power Consumption | 240W/panel |
| LED Brand | SMD 3 in 1 |
| Driver IC | Constant current |
| PSU | 5V 60A |
| Refresh Rate | > 3840HZ |
Part 2: 2022 Creative Indoor Flexible Soft LED Module Screen Display Panel For Advertising Shopping Mall with P1.25 P1.579 P1.667 P1.86 P1.875 P2 P2.5 P2.58 P3 P4 P5 Product detail images
Part 3: Application Caes
Part 4: Material Quality Level
All of our Product materials we choose all top quality levels, including the SMD, IC components, also the PCB, screws, PSU brands etc, so that during the led screen using, it helps to cut down after sale serive costs, to make sure led display screen stable and less aftersale services.
Part 5: Technical Specification
| Item | P1.25 P1.579 P1.667 P1.86 P1.875 P2 P2.5 P2.58 P3 P3.076 P4 P5 Indoor Screen Display for Curved Corner |
| Pixel Pitch | 1.25mm-5mm |
| Pixel Density | 640000-40000 pixels/M2 |
| Pixel Configuration | 1R1G1B |
| LED Type | SMD 3 in 1 |
| Module Size | 320*160mm 256*128mm 240*120mm |
| Module Resolution | 64*64 pixels (optional) |
| Min Viewing Distance | 2-10m |
| Average Power Consumption | 240 W/M2 |
| Scan Mode | Constant current |
| Protection Level | IP43/IP31 |
| Cabinet Size | 960x960mm / 720x720mm |
| Color Temperature | The brightness of R.G.B. is adjustable according to software 100level; Color temperature is adjustable in terms of detailed requirements |
| Input Voltage | AC110-240V, 50Hz/60Hz |
| Brightness | >800 nits |
| Viewing Angle | ≤140° |
| Refresh Rate | > 3840hz |
| Color | 65535 Levels |
| Effective Communication Distance(without relay) | <100 meters |
| Lifespan | ≥100,000 hours |
| Environment Temperature | Storage: -40°C~+85°C , Operation: -20 °C~+45°C |
| Blind Spot Rate | <0.0001(led display industry standard is less than 0.0003) |
| Control Mode | Video frequency synchronization |
Part 6: Installation methods, outdoor front service back service LED Display screen fixed on the wall, on pillars, standing etc all available, and system hardware included sending cards sending box, processor, receiving cards etc.
Part 7: Packing information by plywood cases, packing well and easy to load
Part 8: Certificates
ALL of our Product passed CE, EMC FCC, UL and other security tests, to ensure to meet most market laws and standard requires, and make sure the quality is top level and stable for many years use.
Part 9: About LEDventure

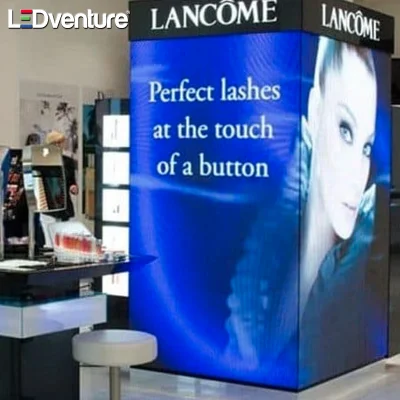

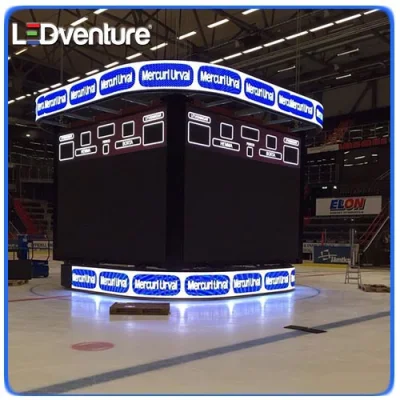

Part 10: LED Display Screen Installation Cases
Most of our led display exported to Europe with high standards, and small percent to USA and Asia
